5.56 vs .223: Are They the Same? The Myth That Refuses to Die

Walk into enough gun shops and you'll hear it eventually, usually from the loudest guy at the counter: "You can run .223 in a 5.56, but never 5.56 in a .223. It's hotter, it's overpressure, it'll blow the bolt right out of the receiver." It sounds authoritative. It sounds like the kind of thing a careful shooter should know. It's also wrong.

Here's the bottom line up front: .223 Remington and 5.56 NATO are very nearly the same cartridge, and you are not going to grenade your rifle by firing 5.56 in a .223 chamber. Same bullet, same external case dimensions, and both will chamber and fire in each other's rifles. The one real difference is chamber geometry, not danger. I've been building and coating rifles for a long time, and I'll back every word of this with the same reloading manuals sitting on my bench right now.

So before you let some forum expert talk you out of a perfectly good box of ammo, let's take this apart like adults who own actual reference books instead of just memes.

Key takeaways

• .223 Remington and 5.56 NATO use the same bullet and the same external case dimensions; they are essentially two names for one cartridge.
• The only meaningful difference is chamber geometry: 5.56 chambers run a longer leade (freebore), while .223 chambers usually have a tighter throat that can shoot a touch better.
• The "5.56 is way higher pressure" claim is misleading. The two are measured with different test methods at different points, so the numbers aren't apples to apples.
• You won't blow up a rifle running 5.56 in a .223 chamber. The reloading manuals treat the rounds interchangeably and carry no such warning.

Are .223 and 5.56 actually the same cartridge?

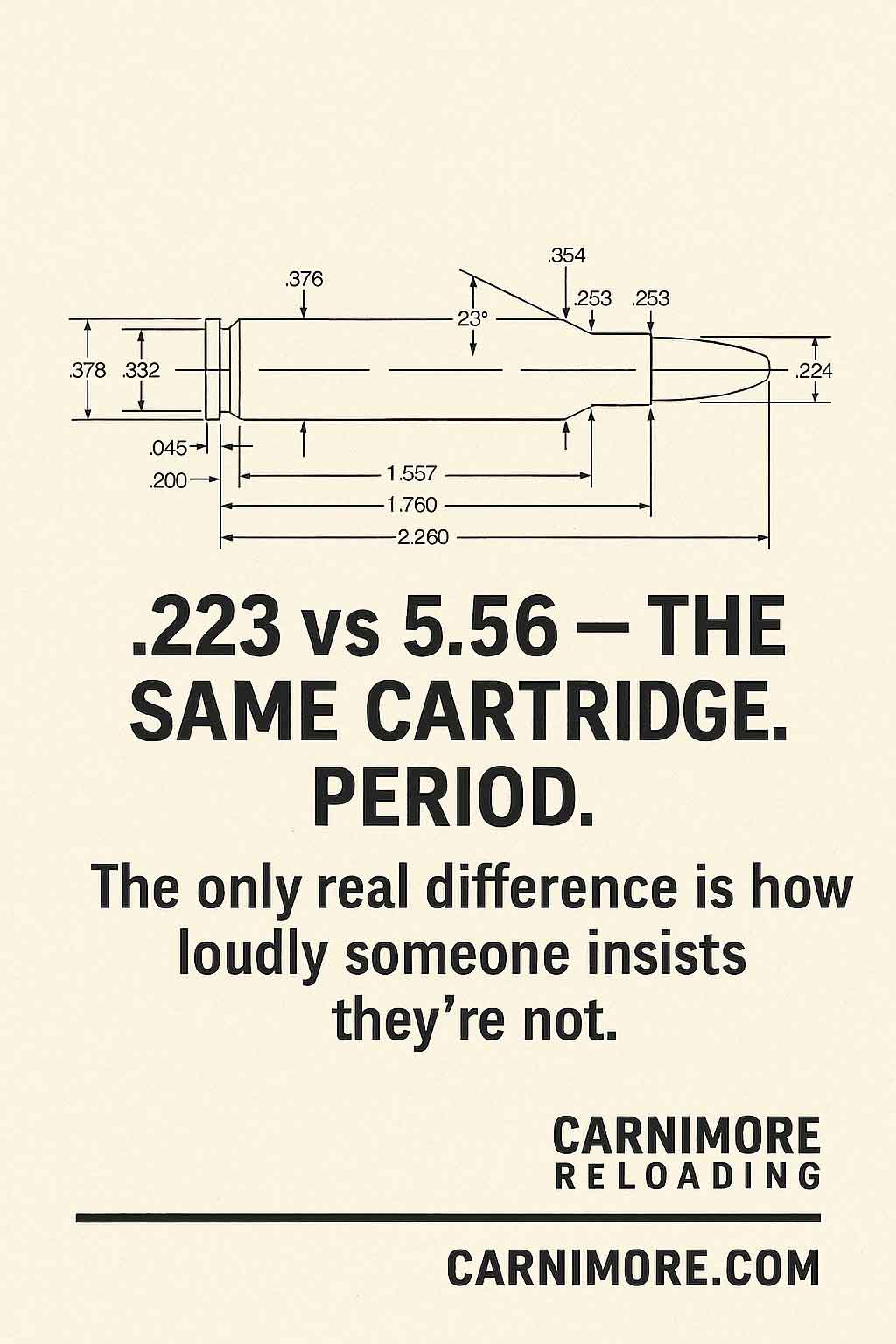

Functionally, yes. They share the same projectile and the same external case dimensions, which is why a round of one will drop into and fire from a rifle chambered for the other. If you laid a loaded .223 next to a loaded 5.56 and handed them to most shooters, they couldn't tell you which was which without reading the headstamp.

That's the part people trip over. They hear "different name" and assume "different round," the way .308 and .30-06 are genuinely different animals. But 5.56 NATO is the military designation and .223 Remington is the commercial one, and the cartridge underneath is the same basic design. The differences that exist live in the rifle's chamber, not in the brass you're feeding it. Hold that thought, because it's the whole ballgame.

What's the real difference between .223 and 5.56?

Chamber geometry. Specifically, the leade, also called the freebore, which is the short stretch of barrel just ahead of the case mouth before the rifling actually grabs the bullet.

A 5.56 NATO chamber is cut with a longer leade. That gives the bullet a little running start before it hits the lands, which lowers pressure and helps the gun keep eating when conditions get ugly. A .223 Remington chamber is usually cut tighter, with a shorter throat. That closer fit tends to give better accuracy because the bullet jumps less before engaging the rifling, but it leaves less margin for sloppy ammo.

Why two different cuts for the same cartridge? Think about who designed each one. NATO had to build a chamber that would run with surplus brass of varying quality, packed in dirt, mud, and the dusty guts of a hard-used M16. Tolerance for filth was the priority. SAAMI, writing the civilian .223 spec, didn't have to plan for a firefight in a sandstorm, so they could prioritize precision. Same cartridge, two different design goals, two slightly different chambers. That's it. That's the famous difference everyone's so worked up about.

Isn't 5.56 way higher pressure than .223?

This is the load-bearing wall of the whole myth, and it's built on a misread spec sheet. Yes, if you look up the published max pressures, 5.56 NATO shows a higher number than .223 Remington. People see that and conclude the military round is straining the gun harder. But you're comparing two figures that were never measured the same way.

The military and SAAMI use different pressure-testing methods, taken at different points along the case, with different equipment. If you want the nerdy version, think copper crusher versus piezo transducer, plus different measurement locations. Put two cartridges through genuinely identical test protocols and the gap shrinks dramatically. Quoting one number against the other and calling 5.56 "overpressure" is apples to oranges, and it's how a measurement quirk got turned into a campfire ghost story.

There's a second piece people get backwards: 5.56 brass is often thicker than commercial .223 brass. Thicker walls mean less internal case volume, which doesn't make the round some kind of bomb. The scary pressure number simply isn't the smoking gun the counter guy thinks it is. Real results downrange come from verified data, the same way they do when you're working out a true zero and dope, not from a marketing spec.

Can you really shoot 5.56 in a .223 rifle, and .223 in a 5.56?

Both directions work in practice, which is exactly why the panic is overblown. Running .223 in a 5.56 chamber is the combination nobody argues about; the tighter ammo in the looser chamber is universally considered fine. The controversy is only ever about the reverse: 5.56 in a .223 chamber.

In the real world, shooters do this constantly without turning their rifles into shrapnel. The tighter .223 throat means a 5.56 round sits a hair closer to the rifling, and in a worst-case combination of a maximum-spec cartridge in a minimum-spec chamber you might see slightly higher pressure. Slightly. Not catastrophically. We're talking about a margin the cartridge and the steel are built to absorb, not a detonation. If you want the no-compromise answer for shooting both safely and accurately, the fix isn't avoiding ammo, it's the chamber you pick when you build the rifle, and we'll get to that.

So why does anyone ever have a round that won't chamber? Almost always it's mechanical, not pressure: a little dirt, a burr, a dinged case, or ammo that wandered out of spec. Which is a good moment to ask the obvious question. If 5.56 in a .223 chamber were genuinely a kaboom waiting to happen, where are all the destroyed rifles?

Where did this myth even come from?

It came from the same places most gun-shop gospel comes from. Start with lawyers. Rifle manufacturers stamp "fire only .223 Remington" warnings on .223-marked guns for liability reasons, the same reflex that puts "do not stop chainsaw with hands" on a chainsaw. That's legal cover, not a ballistics finding, but shooters read it as a danger warning and the telephone game took off from there.

Add the internet experts: a guy half-hears something true-sounding once, repeats it with total confidence, and twenty years later it's "common knowledge." Mix in genuinely misunderstood reamer specs and pressure-testing jargon (real technical details that sound alarming when you don't know what they measure) and you've got a myth with just enough fingerprints of fact to feel legit. This is America, the land of warning stickers on everything. If 5.56 actually threatened a .223 chamber the way people claim, the brass would ship with the warning tattooed on every case.

What do the reloading manuals actually say?

This is where the argument ends, because the people who load these cartridges for a living don't treat them as the deadly mismatch the counter mythology claims. Here's what's sitting on my bench.

Hornady Handbook of Cartridge Reloading, 7th Edition, .223 Remington (pp. 150 to 157). Hornady walks through the cartridge's history, noting it originated as a military round in 1957 and that readily available surplus brass contributed greatly to the .223's popularity. Read those pages closely and notice what isn't there: not one pressure warning, not one caution about danger when 5.56 enters the picture.

Hornady Handbook of Cartridge Reloading, 7th Edition, ".223 Remington Service Rifle Data" (p. 157). Here Hornady refers to 5.56 NATO as ".223 Remington Service Rifle." Same case dimensions, and the manual treats the two interchangeably as loading data. If the premier bullet maker in the country considered 5.56 a different, more dangerous animal, this is precisely where they'd say so. They don't.

Lyman Reloading Handbook, 49th Edition (p. 137). Lyman titles the entry ".223 Remington / 5.56 NATO" as a single combined entry, one heading for both. The page does carry a warning, but read what it actually warns about: do not shoot .223 in a .222 Magnum. That's a real and different mismatch. There is no warning anywhere on that page about 5.56 in a .223 chamber. The book that exists to keep handloaders from blowing themselves up doesn't flag the thing the counter guy swears will kill you.

Three respected manuals, two publishers, and the same verdict: these are two names for one cartridge.

What does this mean for your AR build?

If you're spec'ing a rifle, this is where the theory turns into a decision you actually make, and the answer is refreshingly boring. For most AR-pattern rifles, you don't have to overthink it. Run quality ammo, keep the chamber clean, and feed it what you've got. The doomsday scenario simply isn't waiting for you.

If you want the best of both worlds, accuracy and the freedom to shoot anything, get a .223 Wylde chamber. It's a hybrid cut designed to handle both .223 and 5.56 safely while delivering better accuracy than a standard 5.56 chamber. That's the chamber I'll usually point a precision-minded shooter toward, and it's the kind of detail we sort out at the start of a build instead of leaving to chance. Whether you're putting together a flat-shooting varmint and predator rig or a deeper precision long-range platform, getting the chamber right up front matters more than any internet argument about pressure. And when the rifle's built, a clean protective finish from our coatings work keeps it running through the same dirt and weather NATO designed that long leade for in the first place.

Quit clutching your pearls

.223 and 5.56 are two names for the same cartridge. One wears camo, the other wears khakis, and neither one is going to blow up your rifle. Next time someone at the counter tries to sell you the overpressure ghost story, hand them a reloading manual and tell them to read it slow.

If you'd rather have a rifle built right from the chamber out, with the leade, the throat, and the finish all chosen on purpose, that's our whole job. Tell us what you shoot and where, and take a look at the precision rifle and coating work we do or the training side if you want to actually drive the thing once it's built. We'll keep it simple, and we'll back it with more than a counter rumor. (If you're still working out caliber choices for the field, our deer-caliber breakdown is a good next stop.)

---

Sources

• Hornady Handbook of Cartridge Reloading, 7th Edition (pp. 150 to 157; p. 157, ".223 Remington Service Rifle Data").
• Lyman Reloading Handbook, 49th Edition (p. 137).
